Actual product may differ from what is pictured.
Reed Instruments

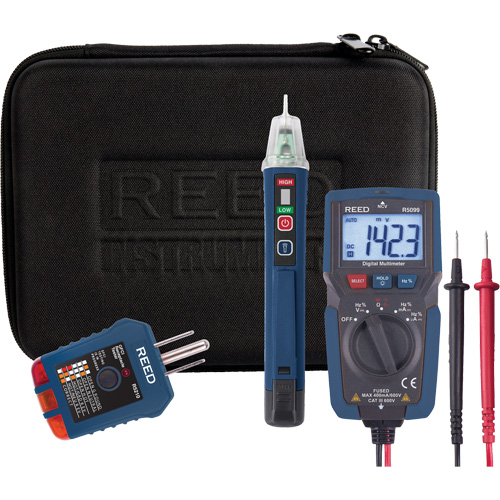

Electrical Test Kit

Part Number: R5099-KIT Model: IC697
C$ 92.46

Sold as: Each

Call For Availability
Available on order as needed.
Please call 647-802-7778 or email info@supplywave.ca
Free shipping on orders over $149*. View Details

Product Details

AC Voltage Range: 4, 40, 400, 600V
DC Voltage Range: 400mV, 4, 40, 400, 600V
AC Accuracy: 4, 40, 400V ±(1.2% rdg. + 3 dgt.), 600V ±(1.5% rdg. + 5 dgt.)
DC Accuracy: 400mV ±(0.8% rdg. + 3 dgt.), 4, 40, 400V ±(0.8% rdg. + 1 dgt.), 600V ±(1% rdg. + 3 dgt.)
AC Resolution: 1, 10, 100mV, 1V
DC Resolution: 0.1, 1, 10, 100mV, 1V
AC/DC Current Range: 400, 4000µA, 40, 400mA
Resistance Range: 400Ω, 4, 40, 400kΩ, 4, 40MΩ
Capacitance Range: 4, 40, 400nF, 4, 40, 100µF
