Winters

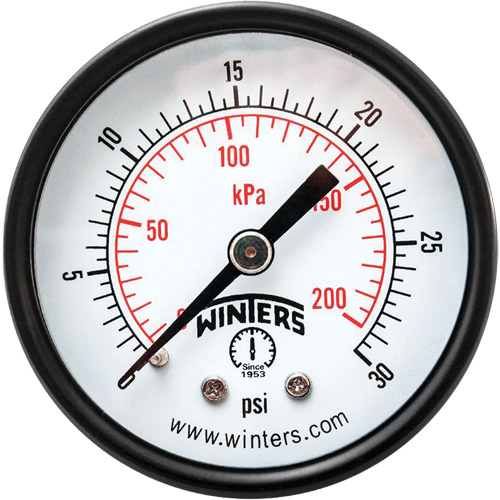

Economy Pressure Gauge

Part Number: PEM1402 Model: YB863
C$ 12.77

Sold as: Each

In Stock
Add to Cart
Free shipping on orders over $149*. View Details

Product Details

Dial Diameter: 2"
Pressure Range: 0 - 30 psi
Connection: Back Mount
Dial Type: Analogue
Connection Thread: 1/8" NPT
Accuracy: ±3-2-3% ANSI/ASME Grade B
Manufacturer's Warranty: 5 Years
IP Rating: IP52
Bourdon Tube Material: Phosphor Bronze
Working Pressure: Maximum 75% of Full Scale Value
Ambient/Process Temperature: -40 to 150°F (-40 to 65°C)
Over-Pressure Limit: 25% of Full Scale Value
