Reed Instruments

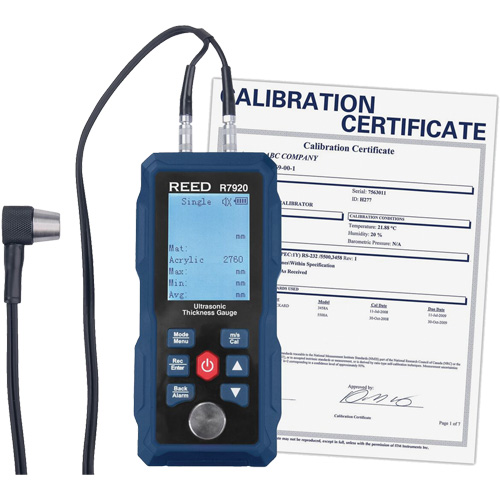

Thickness Gauge with Calibration Certificate

Part Number: R7920-NIST Model: ID027
C$ 772.64

Sold as: Each

Call For Availability
Available on order as needed.
Please call 647-802-7778 or email info@supplywave.ca
Free shipping on orders over $149*. View Details

Product Details

Display: Digital
Measuring Mode: Ultrasound
Thickness Range: 0.04" - 11.8" (1 mm - 300 mm)
Includes: Ultrasonic Thickness Gauge; Ultrasonic Couplant Gel; Probe; USB Cable; Carrying Case; Calibration Certificate
Manufacturer's Warranty: 1 Year
Accuracy: <10mm: ±0.1mm, ≥10mm: ±(1% rdg. +0.1mm)
Resolution: 0.1mm/0.01mm/0.01"
Velocity Range: 1000 to 9999m/s (0.039 to 0.394in/µs)
Compatible Materials: Steel, cast iron, aluminum, acrylic resin, red copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron, and nodular cast iron
Display: 2.4" monochrome dot matrix screen
Probe Length: 3' (91cm)
Probe Diameter: 0.5" (12.7mm)
