Reed Instruments

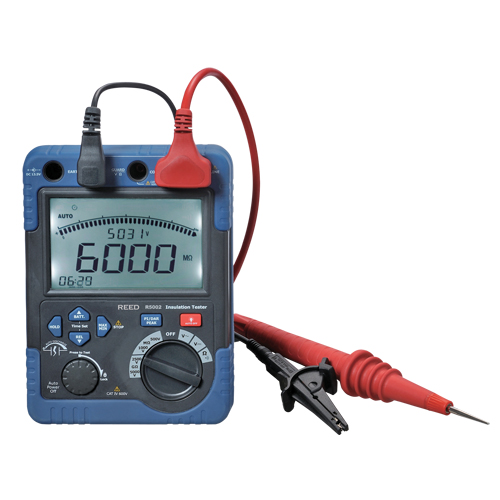

Insulation Resistance Tester

Part Number: R5002 Model: IA855
C$ 840.18

Sold as: Each

Call For Availability
Available on order as needed.
Please call 647-802-7778 or email info@supplywave.ca
Free shipping on orders over $149*. View Details

Product Details

Display Type: Digital
Insulation Resistance - Test Voltages: 500V, 1000V, 2500V, 5000V DC
Insulation Resistance - Measurement Range: 0 to 60.0GΩ
Insulation Resistance - Accuracy: ±5% rdg. +3 dgt.
Insulation Resistance - Open Circuit Voltage: +20%, -0%
Insulation Resistance - Rated Current: 1 to 1.2mA
Resistance Tests - Measurement Range: 0.1 to 6000Ω
Resistance Tests - Accuracy: ±1.5% rdg. +10 dgt.
Resistance Tests - Continuity Test: Buzzer sounds at <50Ω
Resistance Tests - Short Circuit Current: ≥200mA
